Insert buttons

Press the Article Image button in the Formatting toolbar to reveal special inserable items and blocks such as symbols, Math expressions and separators.

Bookmarks#

See the dedicated Bookmarks section.

Emoji#

Article Image

This feature allows inserting Unicode emoji characters. Simply select a category and a desired emoji to insert it.

Emojis can also be searched by their English name and the skin tone can be selected via a combo box to the right.

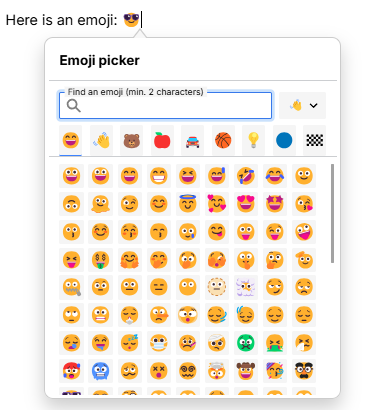

There is also the possibility of inserting emojis directly by typing : followed by a name of an emoji, triggering the display of a list of emojis. Simply use the arrow keys to select one and press Enter to insert it.

Article Image

Symbols#

Article Image

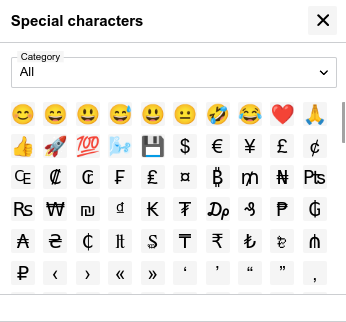

Pressing the Article Image button will reveal a popup window displaying a list of characters that are generally more difficult to insert directly from the keyboard, such as a subset of emojis, quotation characters, etc.

Interaction:

  • Click on a character to insert it at the current cursor position.
  • The window can be dragged around by the top bar where the title is, to avoid it getting in the way of the text.
  • Click on the Category selector to filter the characters.

Math equations#

See the dedicated Math Equations page.

Mermaid diagram#

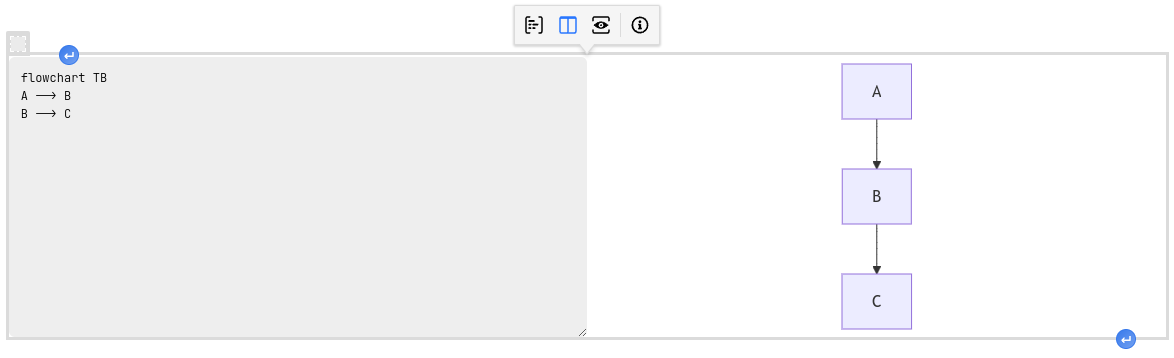

Press the Article Image button to create an inline Mermaid diagram.

This feature is quite similar to the Mermaid Diagrams note types and is meant as an alternative to it for simple diagrams. For more complex diagrams, use the Include Note feature for a dedicated Mermaid note.

Article Image

Horizontal ruler#

This feature will display a horizontal line, generally useful to separate different sections of the text. To do so, press the Article Image button in the Formatting toolbar.

Article Image

Alternatively, it's possible to insert a horizontal ruler by typing ---.

Page break#

Article Image

Page breaks provide a way to force the next paragraph or block (table, image, etc.) to be displayed onto the next page when printing (either to a real printer to when exporting to PDF).

Page breaks are marked in the editor with the words Page break, but they will not actually be shown when printed.

  • To insert a page break, press the Article Image in the formatting toolbar.
  • To insert many page breaks at once, insert a page break first, click on it and press Ctrl+C. Then use Ctrl+V, to paste as many times as needed.
